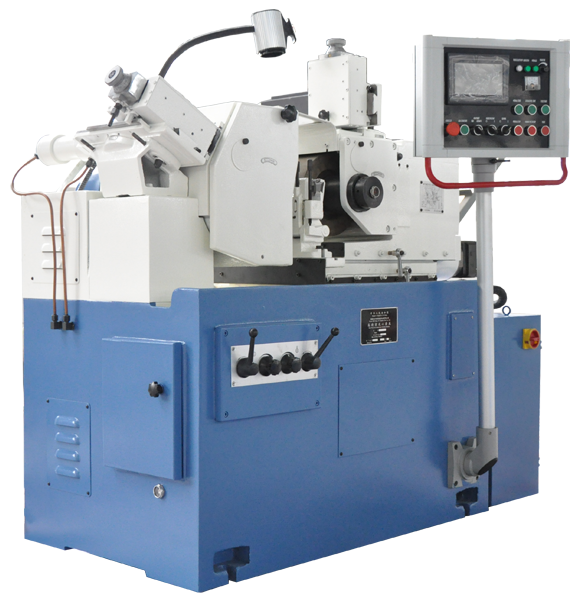

MM1040S centerless grinding machine

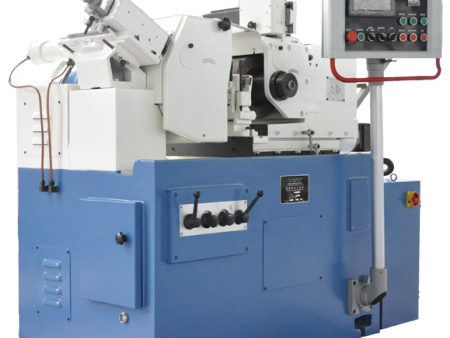

MM1040S centerless grinding machine

1, the main use and scope of application

This machine is mainly used to grind cylindrical parts with a diameter of 2~40mm and a

length of less than 140mm. It can also grind rotary forming parts with a diameter of

 7~40mm and a length of less than 120mm, and taper parts with a diameter of less than

 1:20 and cylindrical parts with a diameter of 7~40mm and a maximum length of 300mm.

It is suitable for large batch factories.

1.2 Features

1.2.1 The grinding wheel spindle adopts five-piece dynamic pressure bearing, which

 has large bearing capacity, good rigidity and smooth rotation.

1.2.2 The working speed of the guide wheel adopts AC motor frequency conversion.

Easy to choose the right speed for parts with different diameters.

The main shaft of the guide wheel adopts an integral bearing block in the front and a

rolling bearing block in the back, and there is an integral bearing block auxiliary support

 at the door cover, which has large bearing capacity, good rigidity and smooth rotation.

1.2.3 The guide wheel can be rotated at a small Angle in the horizontal plane, and the

grinding wheel need not be trimmed into a cone when grinding conical parts.

1.2.4 The longitudinal movement of the grinding wheel dresser and the guide wheel

 dresser are driven by hydraulic, with uniform speed and high precision, and can reduce

 the labor intensity of the operator.

1.2.5 The shape guide rail of the two trimmers adopts the double V-shaped steel ball

structure guide rail, which has the characteristics of sensitive shape, high precision and

 long life.

1.2.6 The feed movement adopts double V-shaped guide rail, which has sensitive movem

ent, high movement accuracy and long life. The feed mechanism adopts servo motor,

 turbo worm and rolling screw to realize handwheel-free operation. The size of the feed

 value is clicked according to the demand.

1.2.7 The reciprocating and punching action of cutting into the grinding can realize

automatic circulation, and the coarse grinding, fine grinding and no spark delay can be

set arbitrarily according to demand.

2. Technical parameters

2.1 Longitudinal feed grinding (standard bracket)

2.1.1 Workpiece diameter 2~40mm

2.1.2 Maximum grinding length 140mm

2.2 Transverse feed grinding

2.2.1 Workpiece diameter 7~40mm

2.2.2 Maximum grinding length 120mm

2.3 Grinding wheel PSΑ350X125X127

2.4 Guide wheel PSΑ250X125X111.2

2.5 Grinding wheel speed 1870r/min

2.6 Guide wheel speed

Working speed 20~180r/min (non-polar)

Dressing speed ≥250r/min

2.7 Guide wheel rotation Angle

Inside the vertical plane - 2°~+4 °

0°~3° in the horizontal plane

2.8 Guide wheel frame feed minimum value 0.001mm

2.9 Cut into feed

2.9.1 Fast feed speed 30mm/min

2.9.2 Cut feed speed 1~500um/s

2.9.3 Non-spark grinding time 0 to 30s

2.10 The minimum feed value of sand guide wheel dresser is 0.01mm

2.11 Connect the center of the grinding wheel and guide wheel to the bottom surface of the bracket 190mm

2.12 The total power of the machine is about 9Kw

Grinding wheel motor power 7.5Kw

Guide wheel motor power 1.1Kw

Static torque of feed servo motor 5.39N.M

2.13 Power supply 50Hz, 380V

2.14 Overall dimensions (L x W x H) of the machine tool are 155cmX130cmX140cm

2.15 Machine weight Approx2000kg Machine weight approx2000kg
