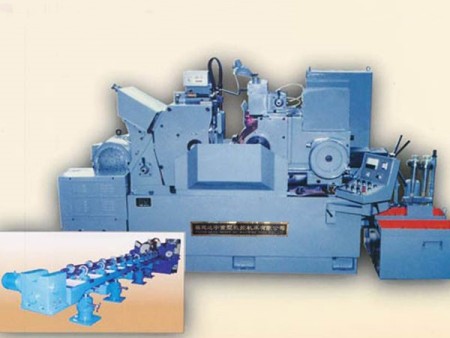

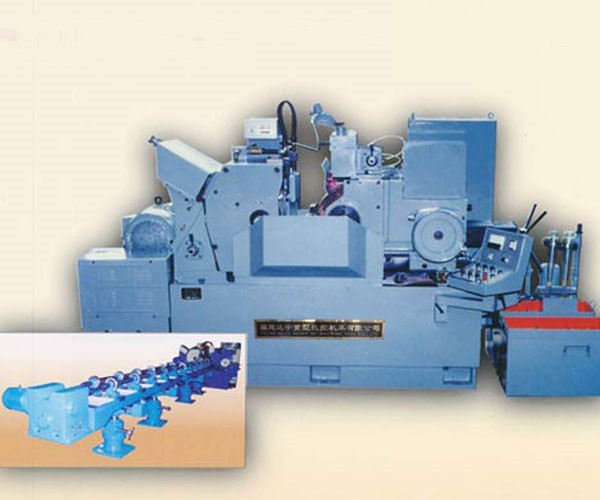

M10100 centerless grinding machine


This machine can grind cylinder, cone and forming rotary parts, suitable for precision parts, mass production.


Main specifications:


1, the maximum grinding workpiece diameter (standard bracket) 5 ~ 100 mm


2, maximum grinding workpiece length


(1) Through grinding (standard bracket) 250mm


(2) Cut into the mill 190 mm


3, maximum grinding weight 5 kg


4, grinding wheel maximum specifications P600×200×305


Grinding wheel minimum size P400×200×305


5, the maximum size of the guide wheel PSA350×200×127


Guide wheel minimum specification PSA280×200×127


6, grinding wheel speed 1010 RPM


7. Speed of guide wheel


(1) When processing the workpiece 10 ~ 100 RPM


(2) The guide wheel is trimmed at 200 RPM


8, the guide wheel frame rotates in the vertical plane -0.5 ~ +4.5°


9. Grinding wheel and guide wheel dresser


(1) The rotation Angle in the surface (grinding wheel dresser) is 0 ~ 3°


(2) the rotation Angle of the vertical surface is 0 ~ 5°


(3) The contour height of the contour plate is ±10 mm


10. Bracket


(1) ±2.5° in the horizontal plane


11. The maximum movement of the feed mechanism is 5 mm


12, dresser dial each turn of the feed amount of 0.01 mm


13. The distance between the grinding wheel and the center of the guide wheel and the positioning surface of the bracket is 260 mm


14, the hydraulic system working pressure 0.6Mpa


15, hydraulic pump flow 10 L/min


16, grinding frame lubrication pump flow 2.5 L/min


17, cooling pump flow 100 L/min


18, motor power:


(1) Grinding wheel motor 18.5 kW


(2) Guide wheel motor 4 kW


(3) Hydraulic pump motor 0.55 kW


(4) Lubrication pump motor 0.12 kW


(5) Cooling pump motor 1.1 kw


19, the overall size of the machine tool (length × width × height) 2850×1725×1630


20. The net weight of the machine is 5500 kg
